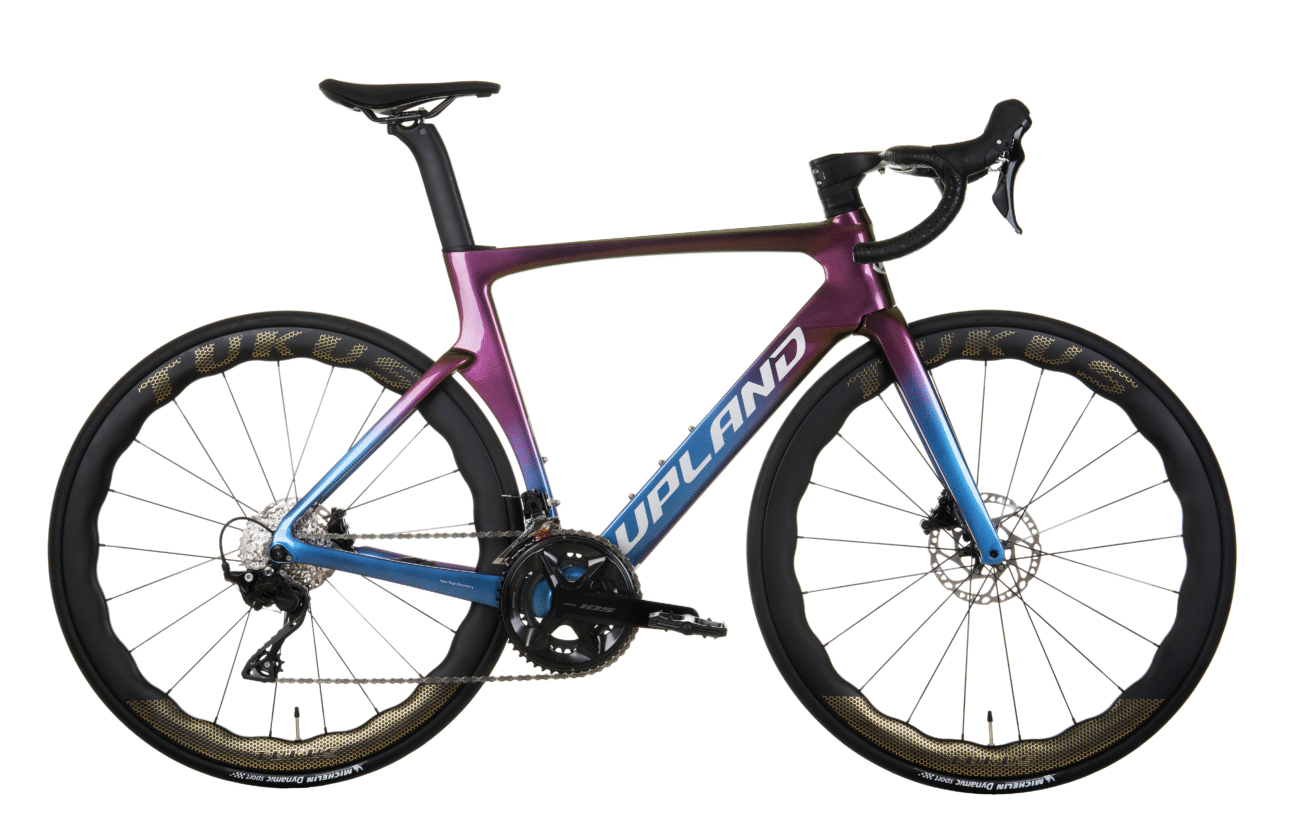

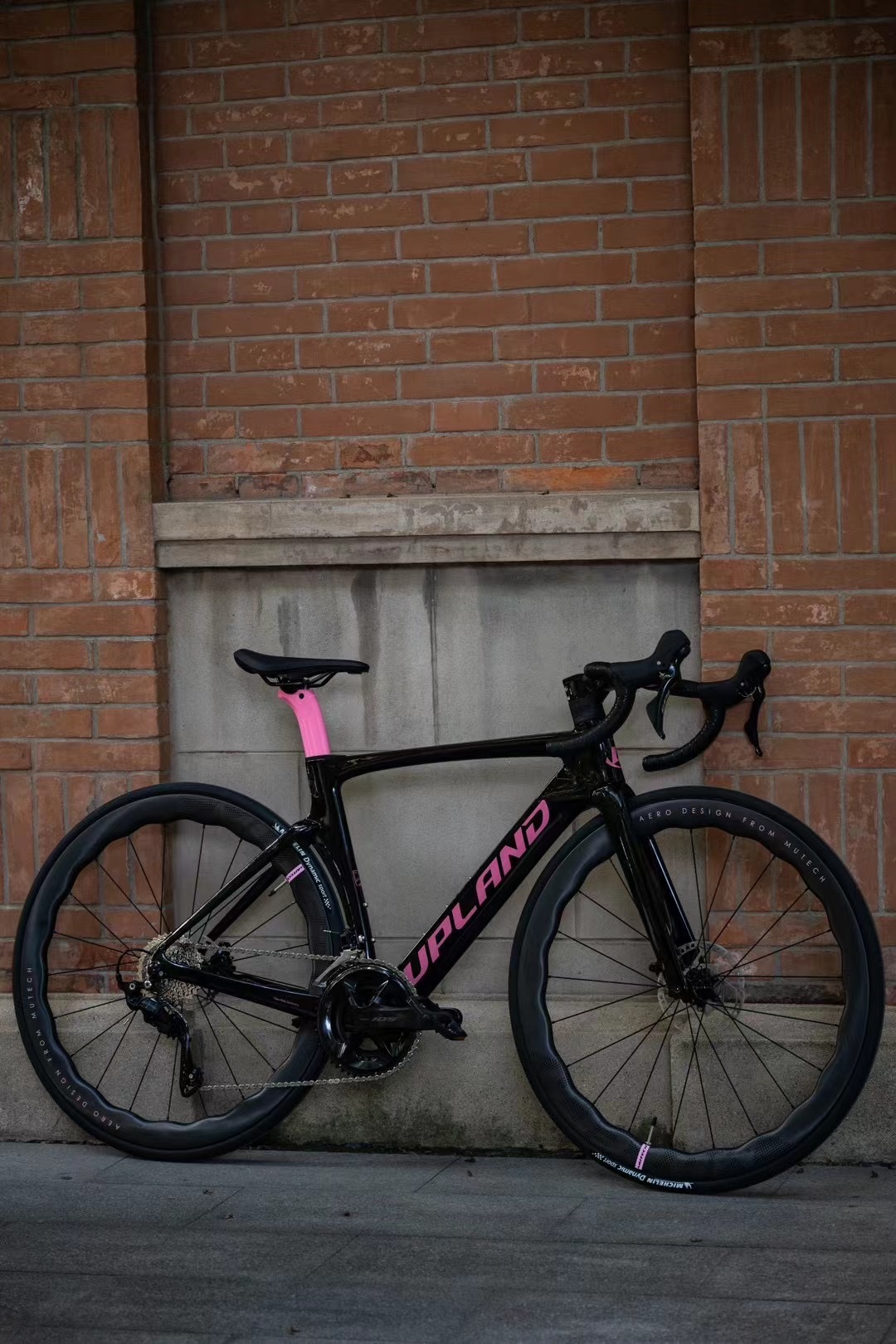

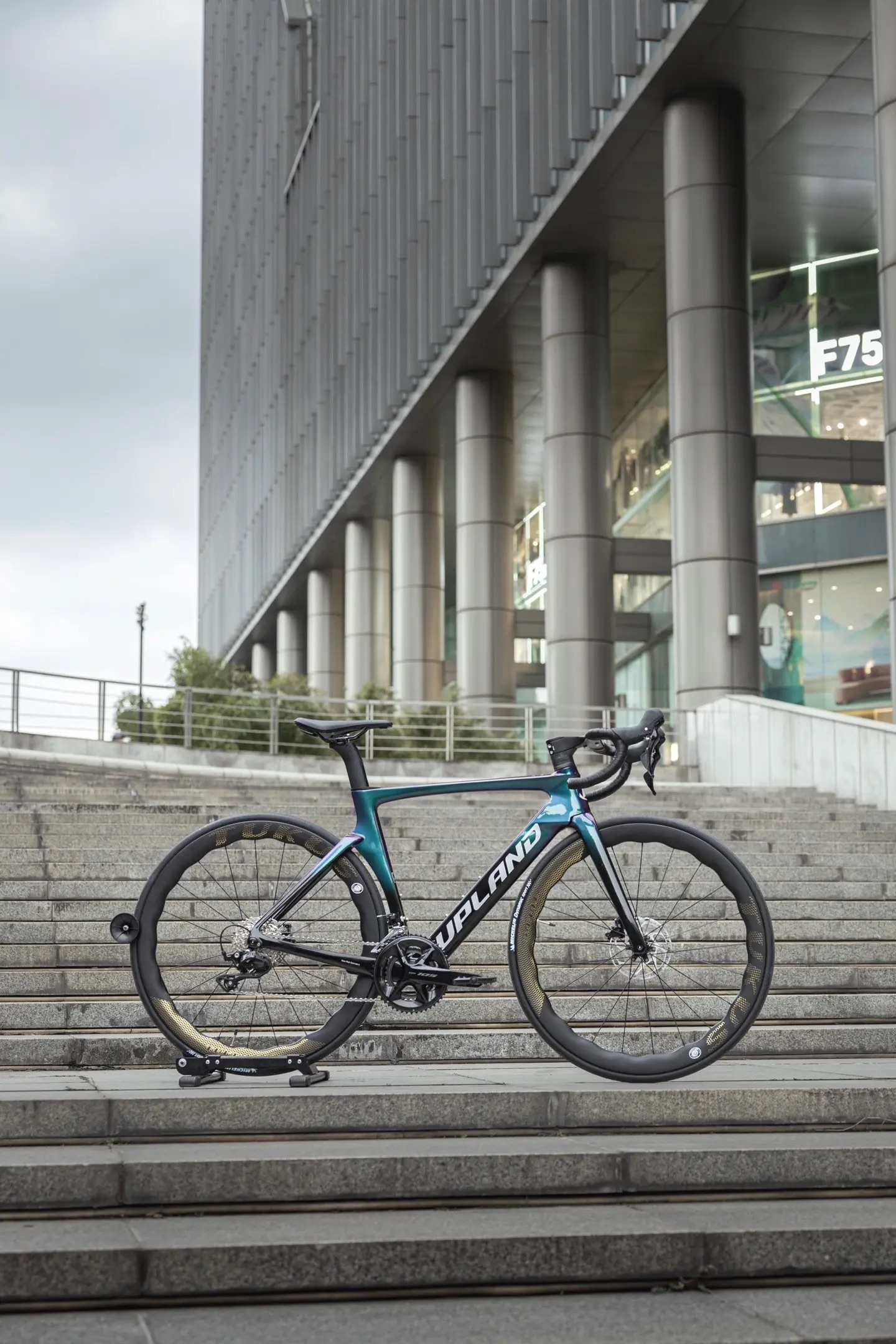

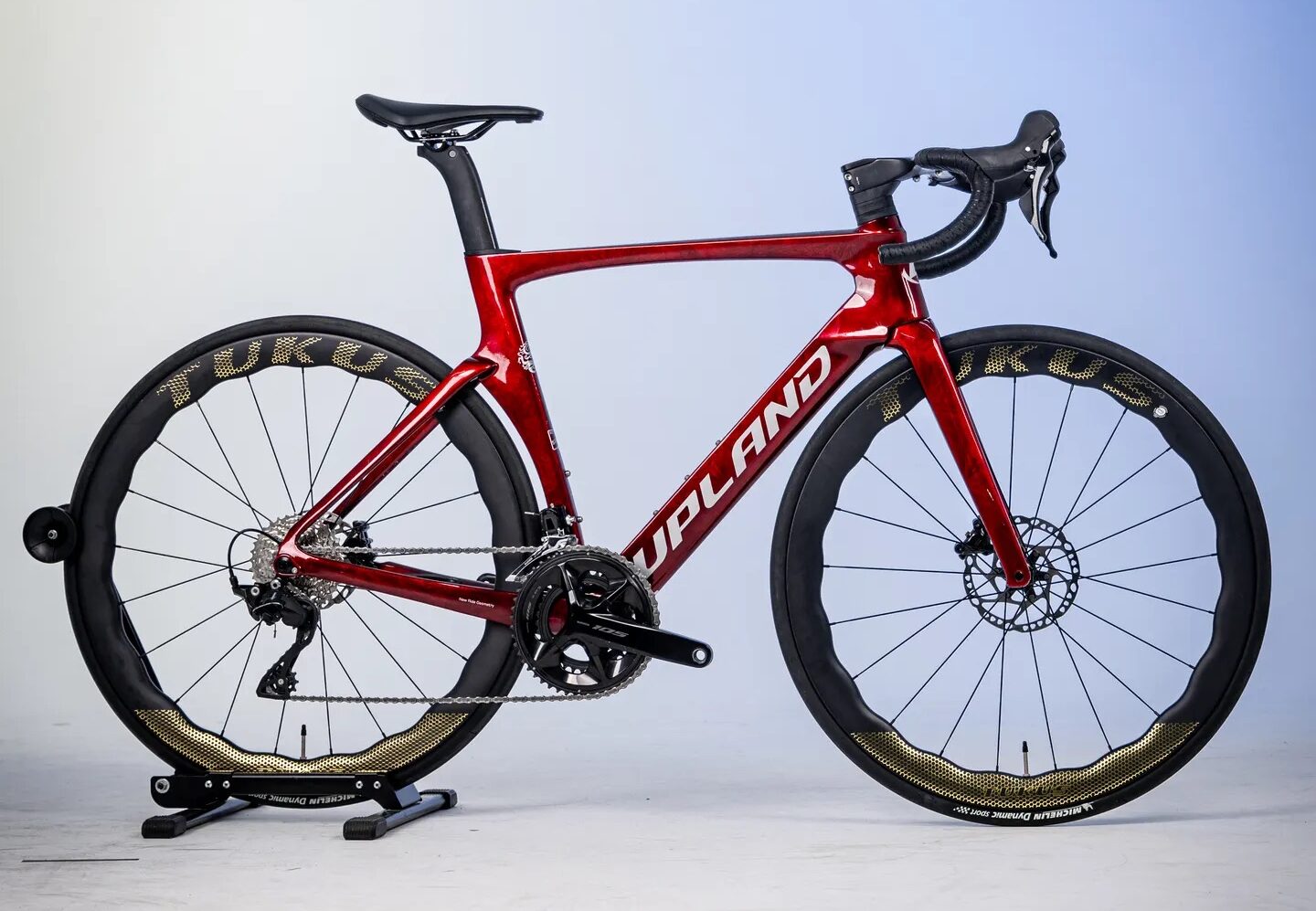

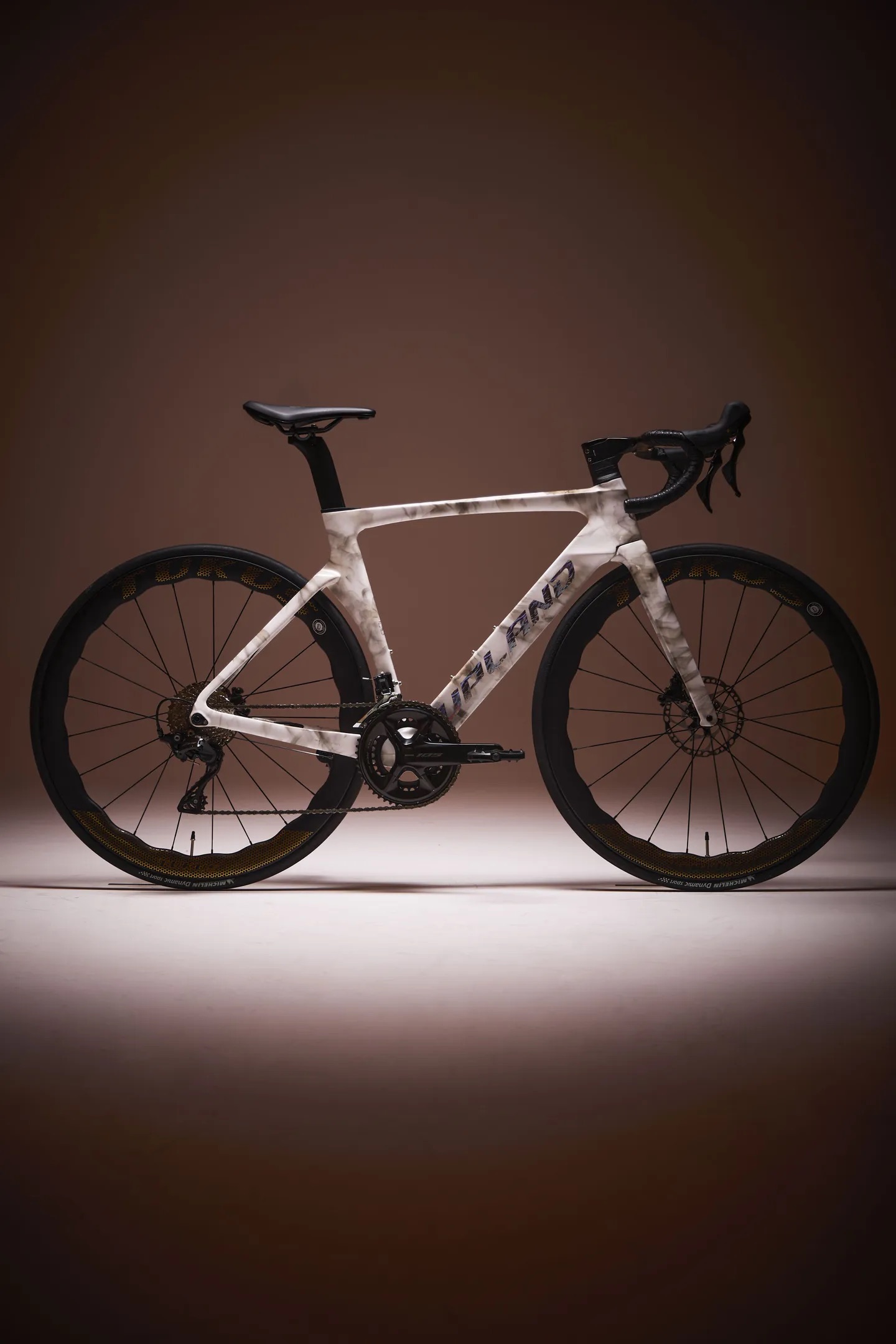

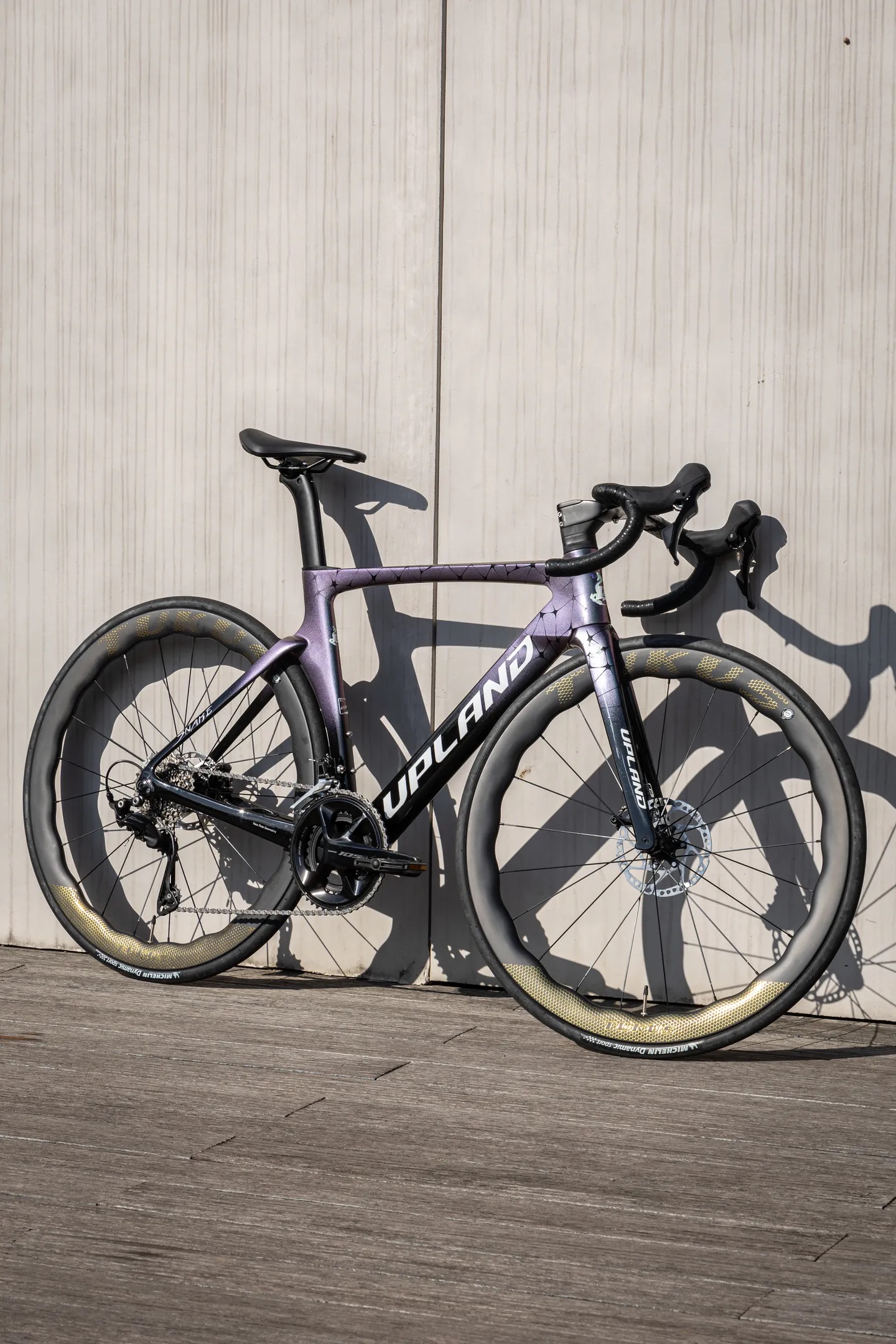

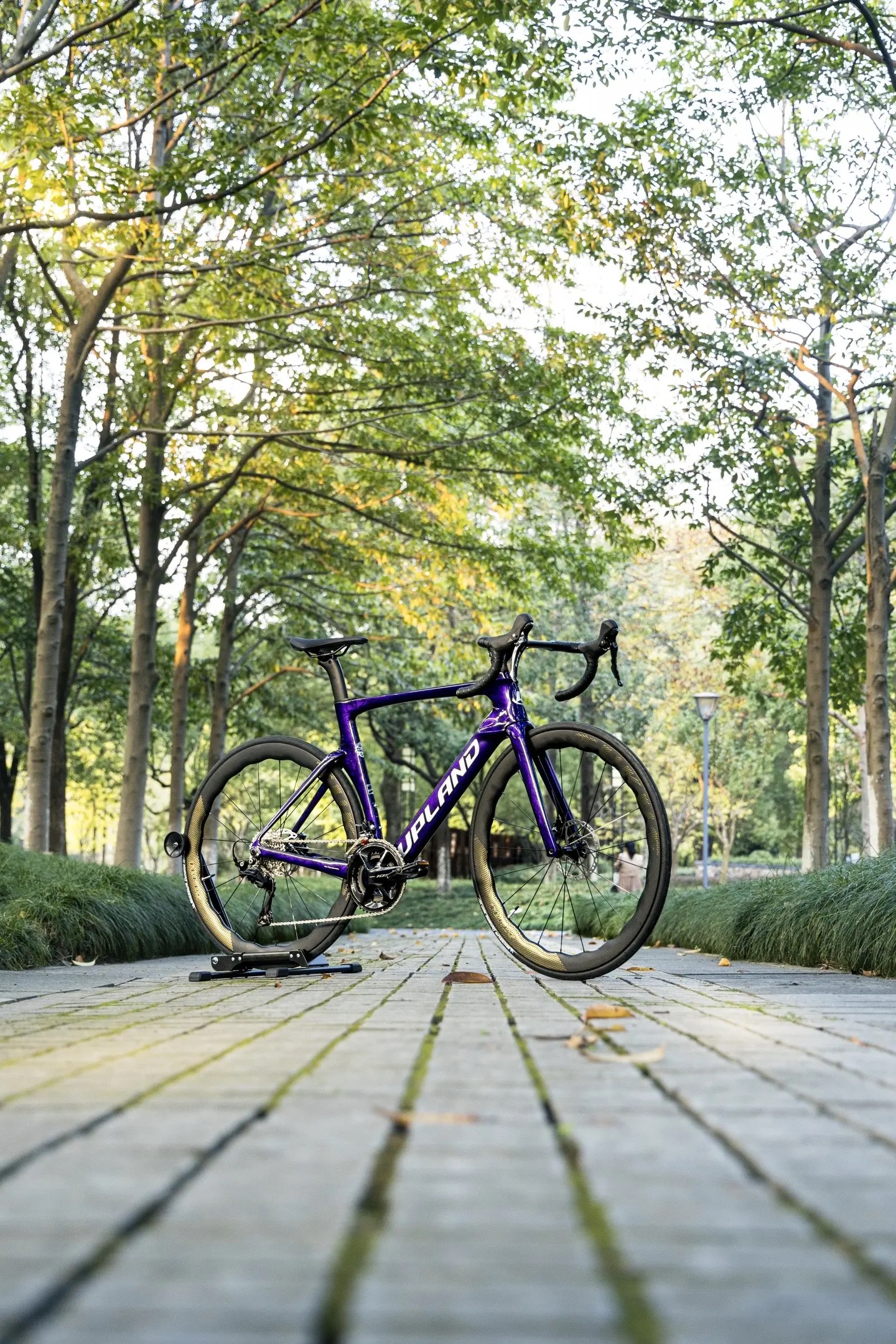

UPLAND – R70

Frameset:

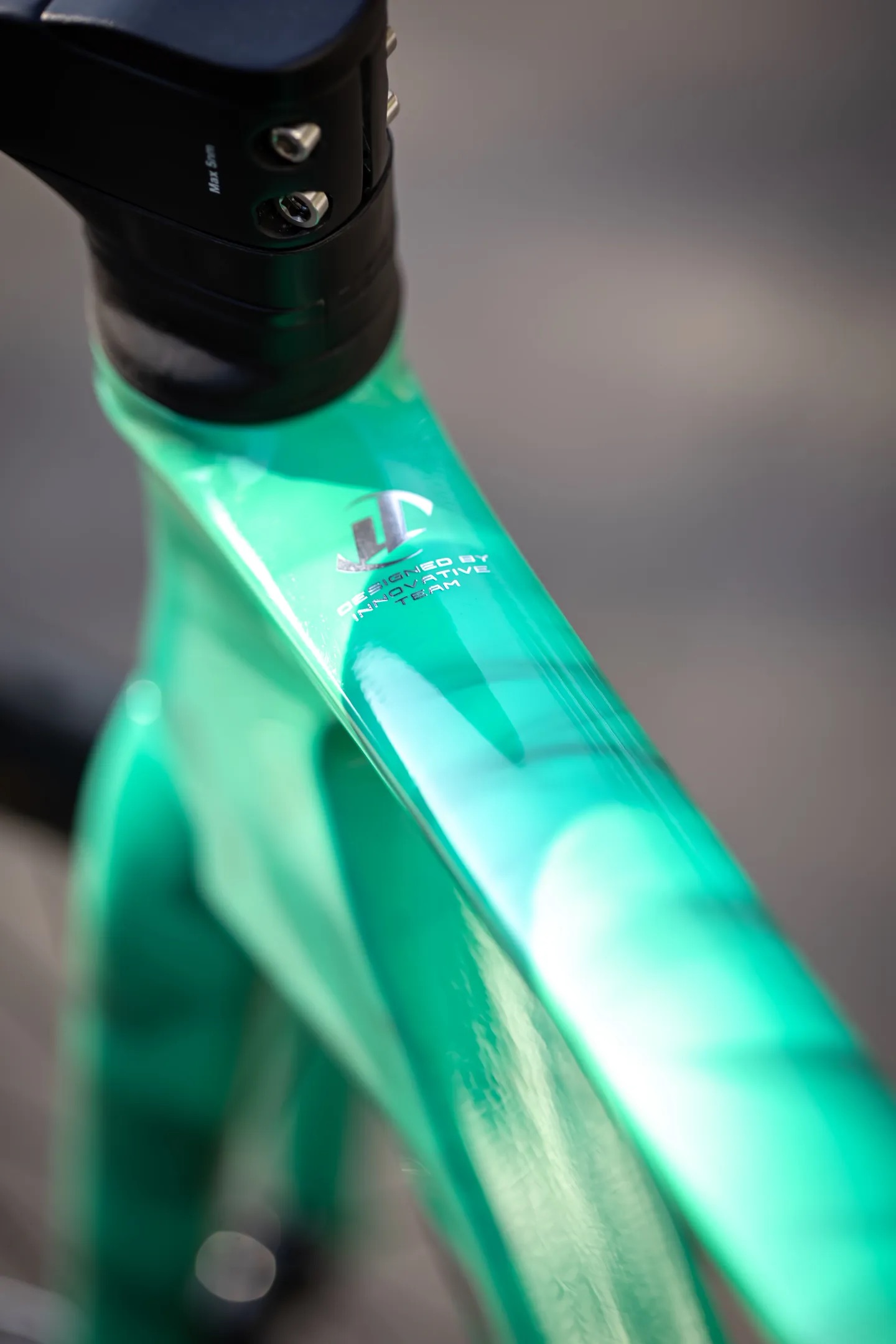

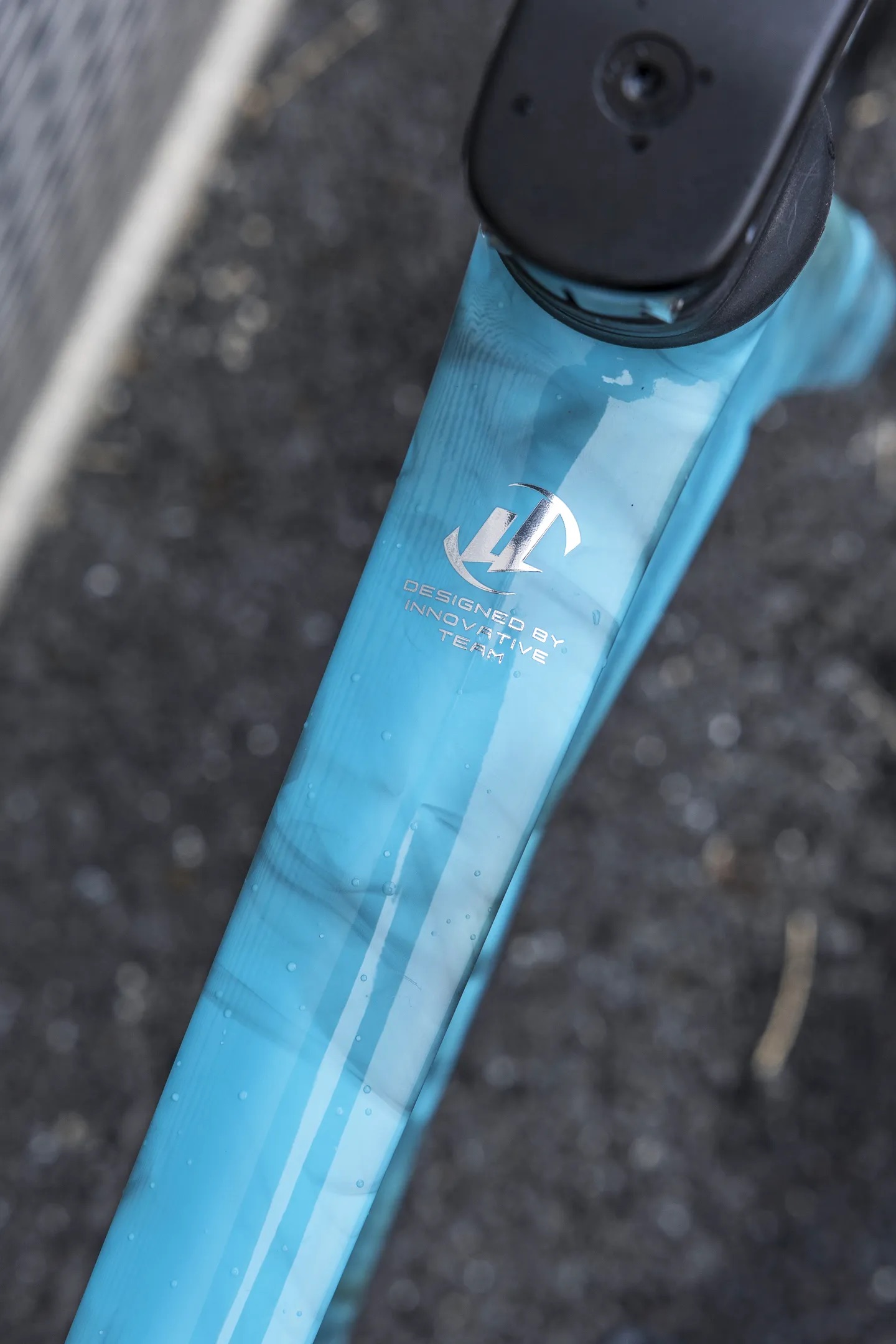

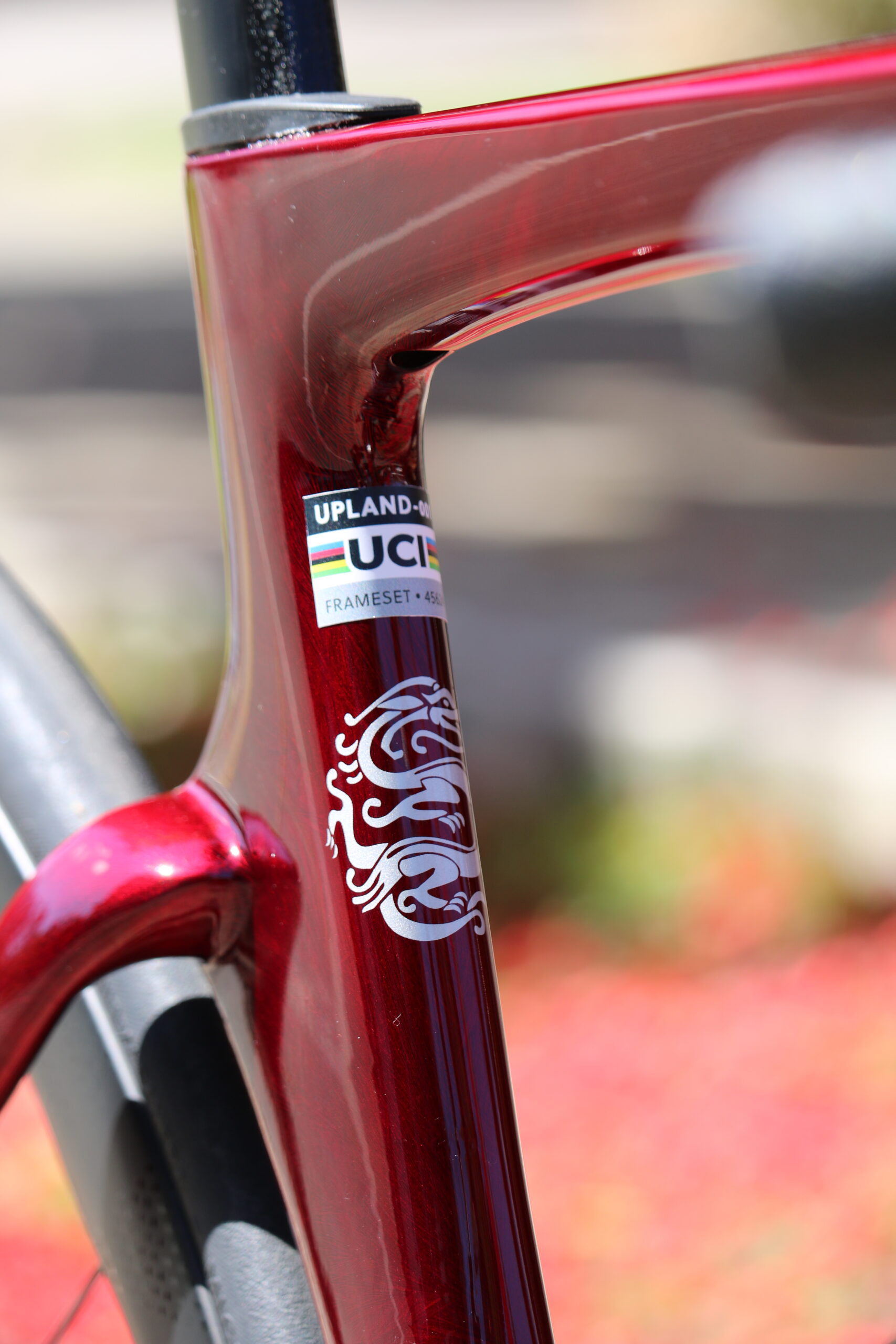

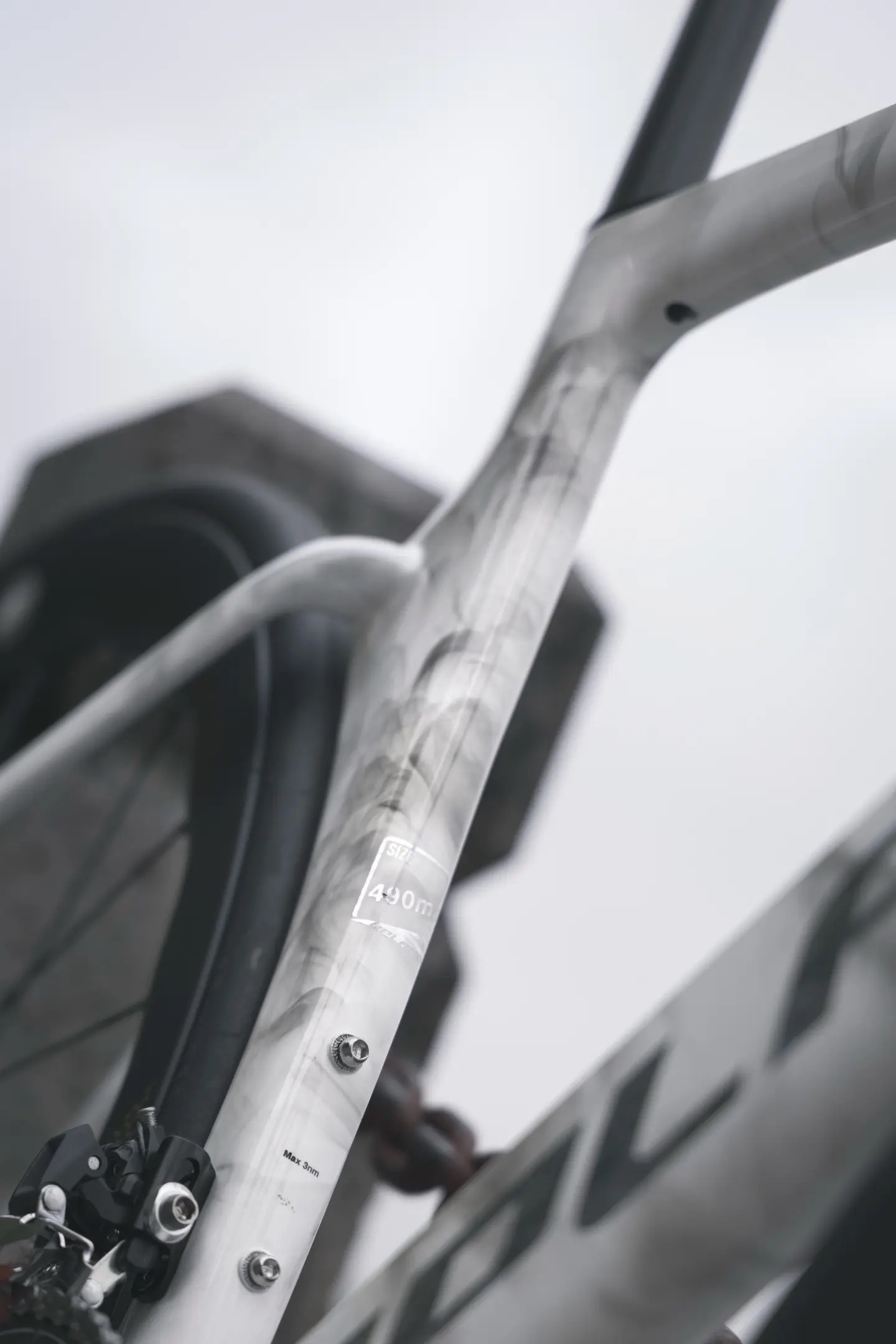

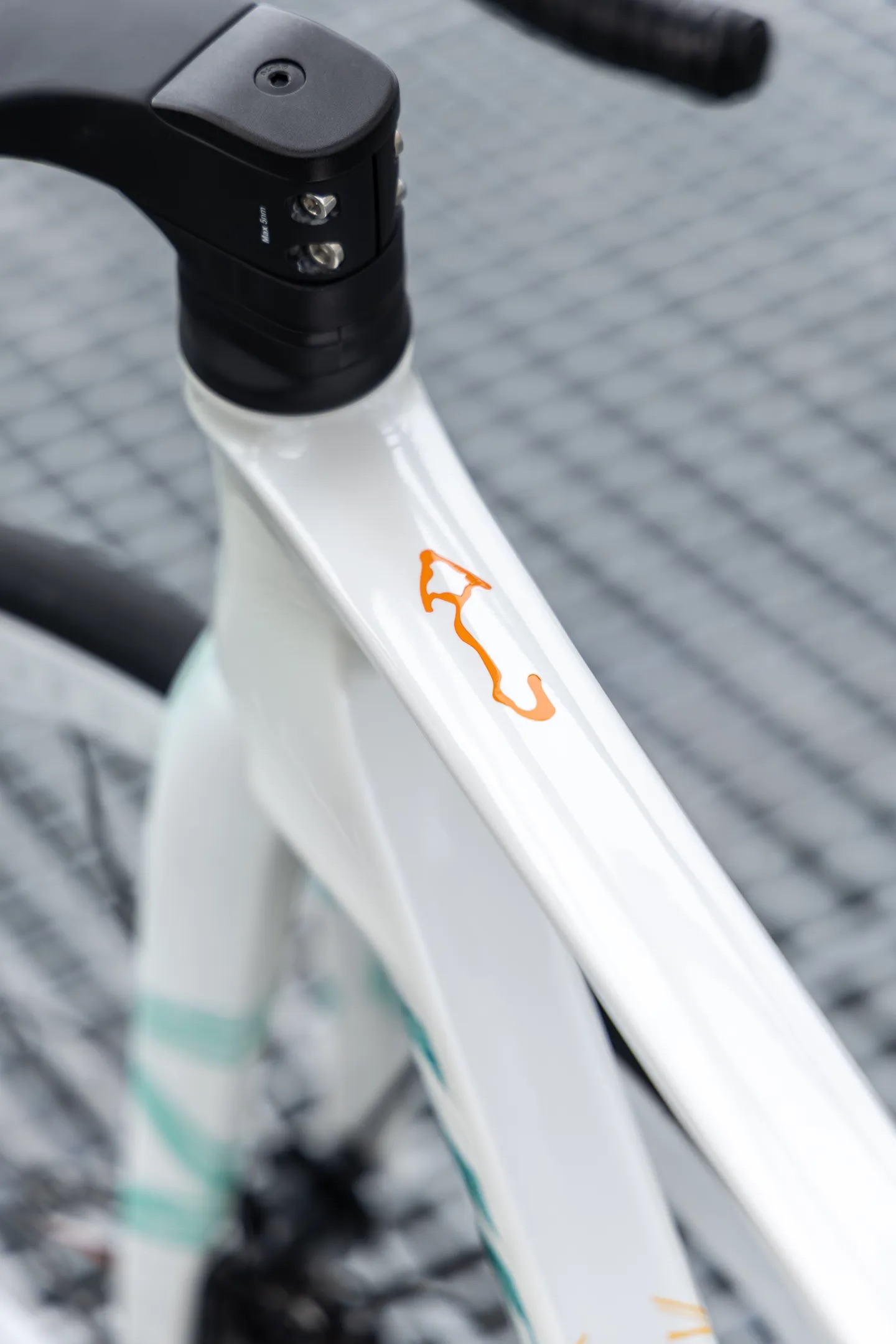

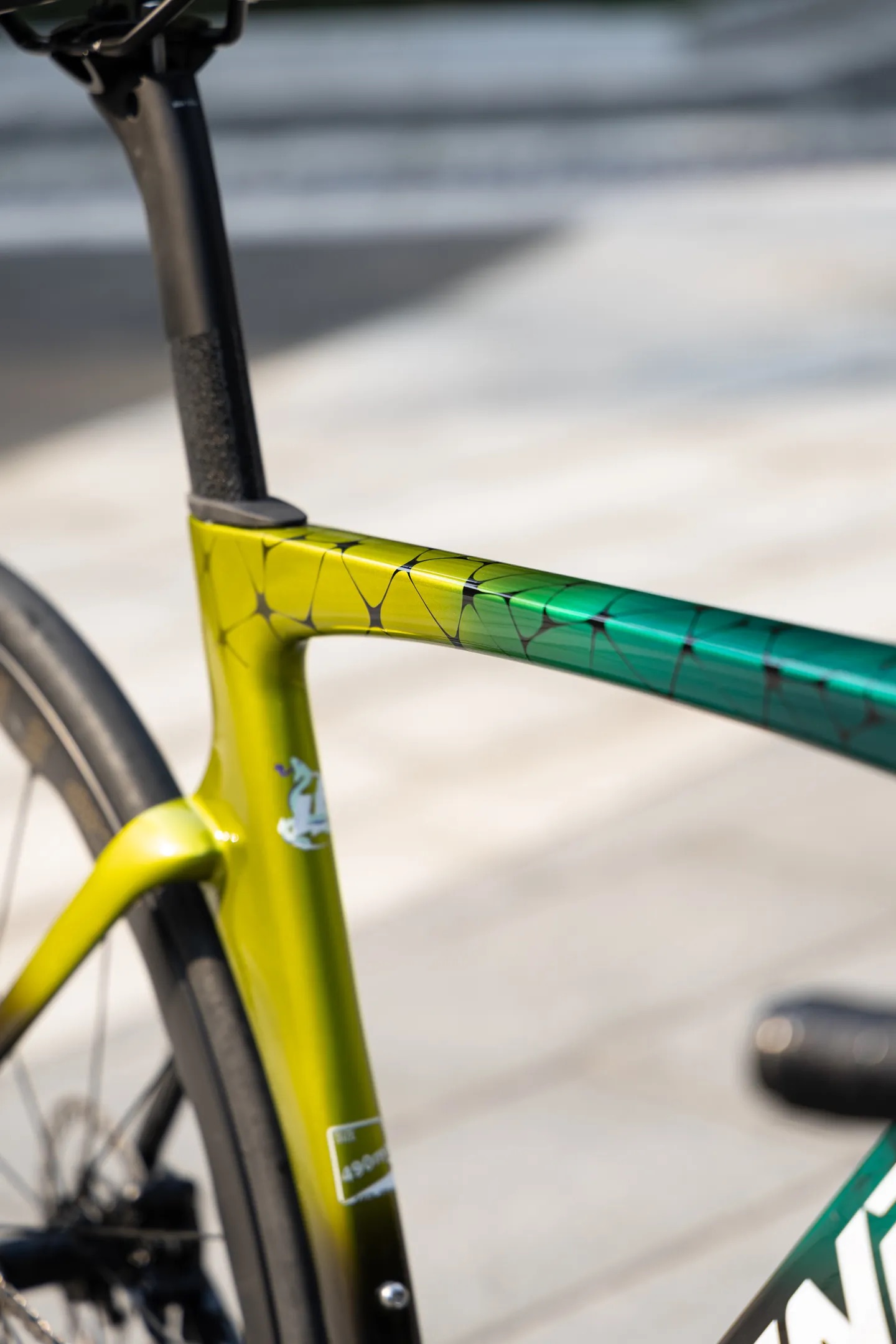

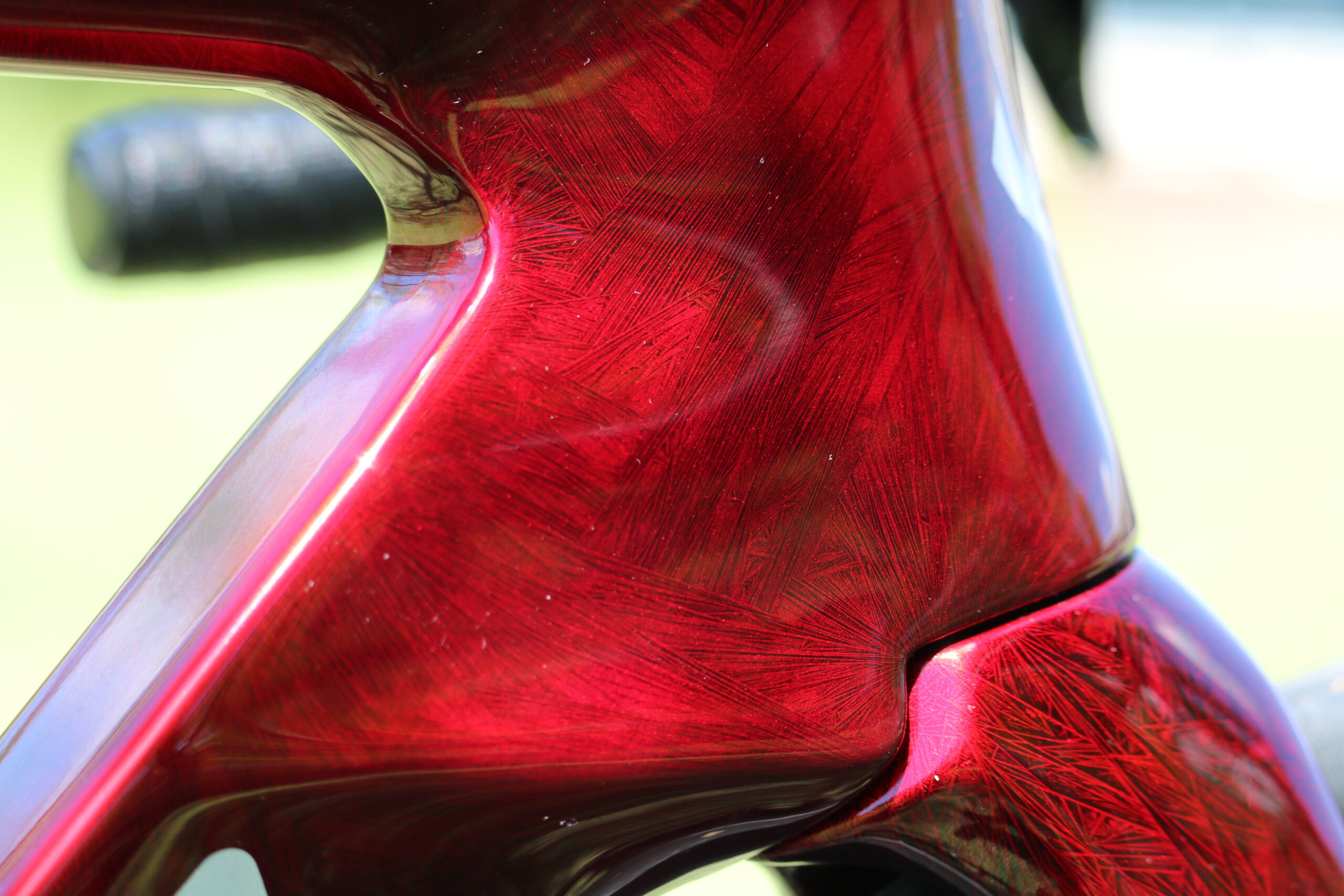

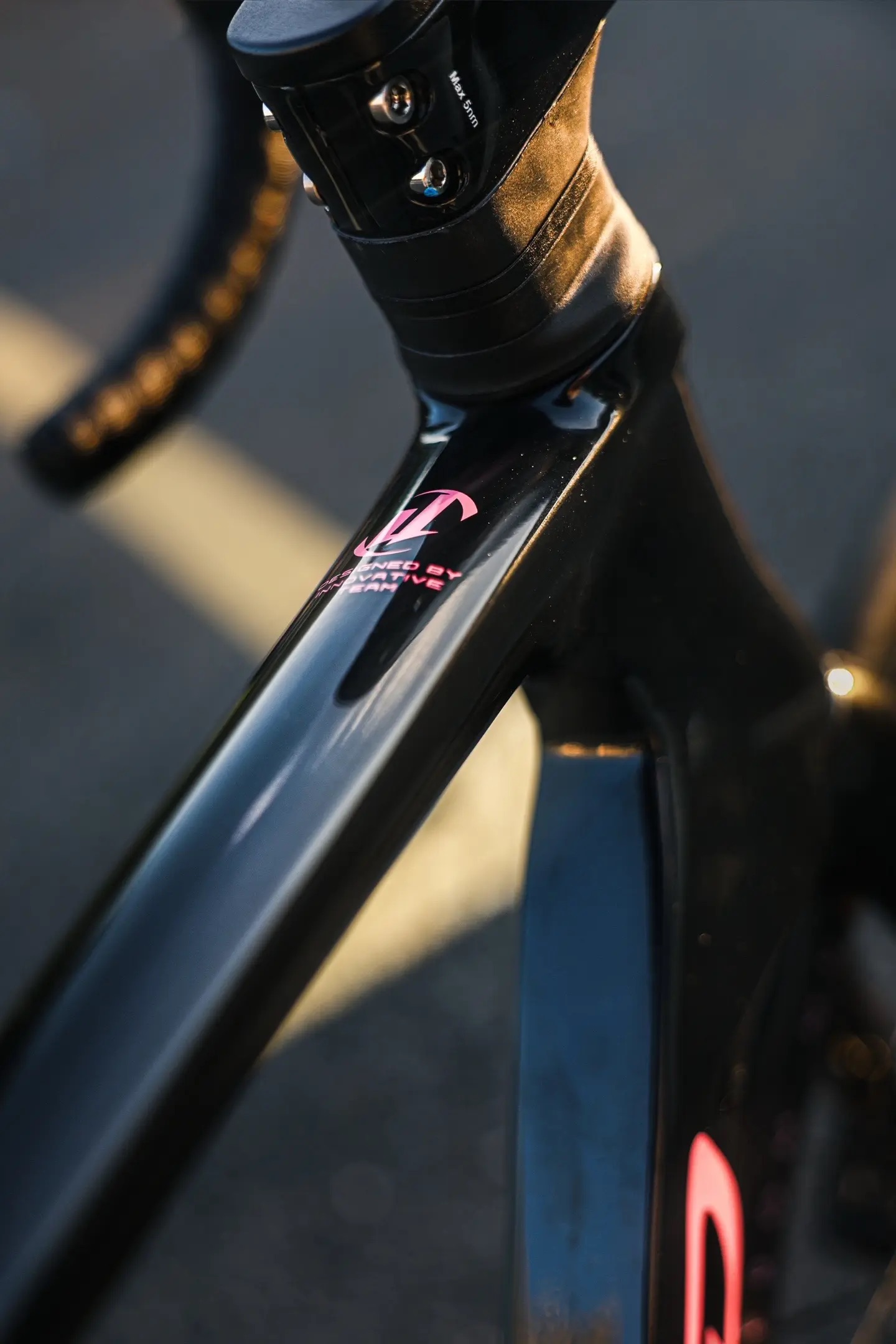

UPLAND Carbon fibre Aero Frame-Integrated (internal cable routing) with Carbon fibre Fork and Aerodynamic D-shaped carbon fibre seatpost

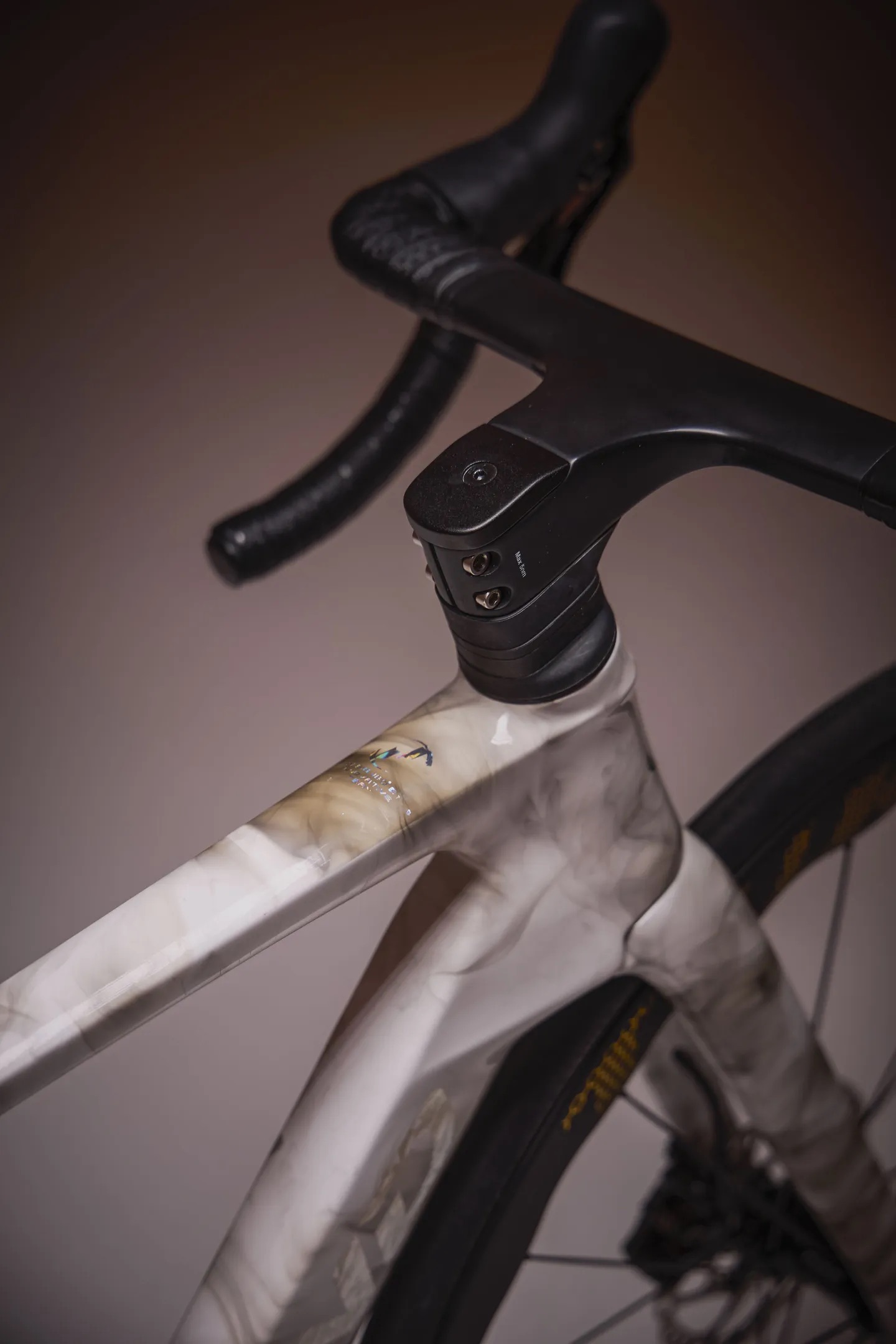

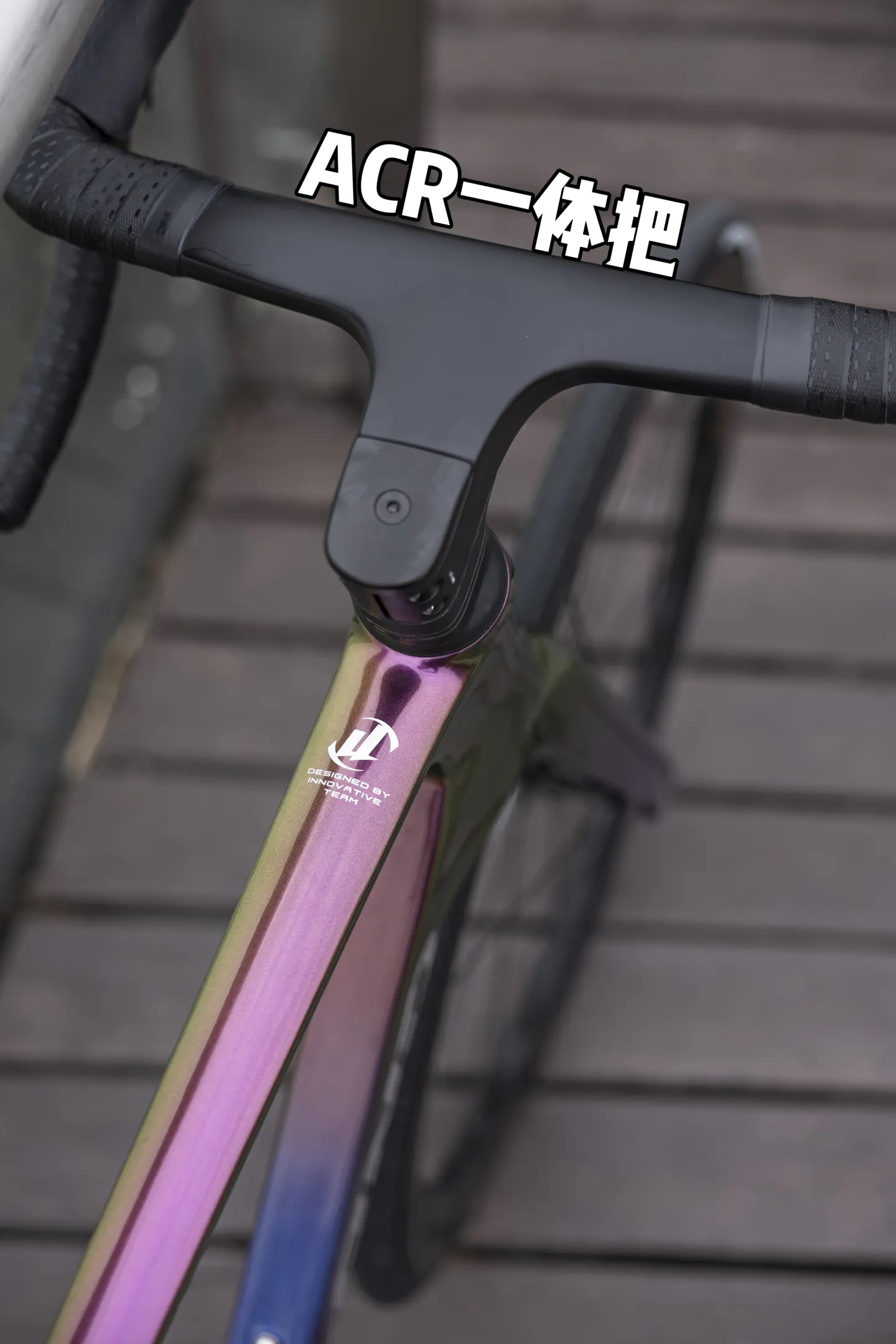

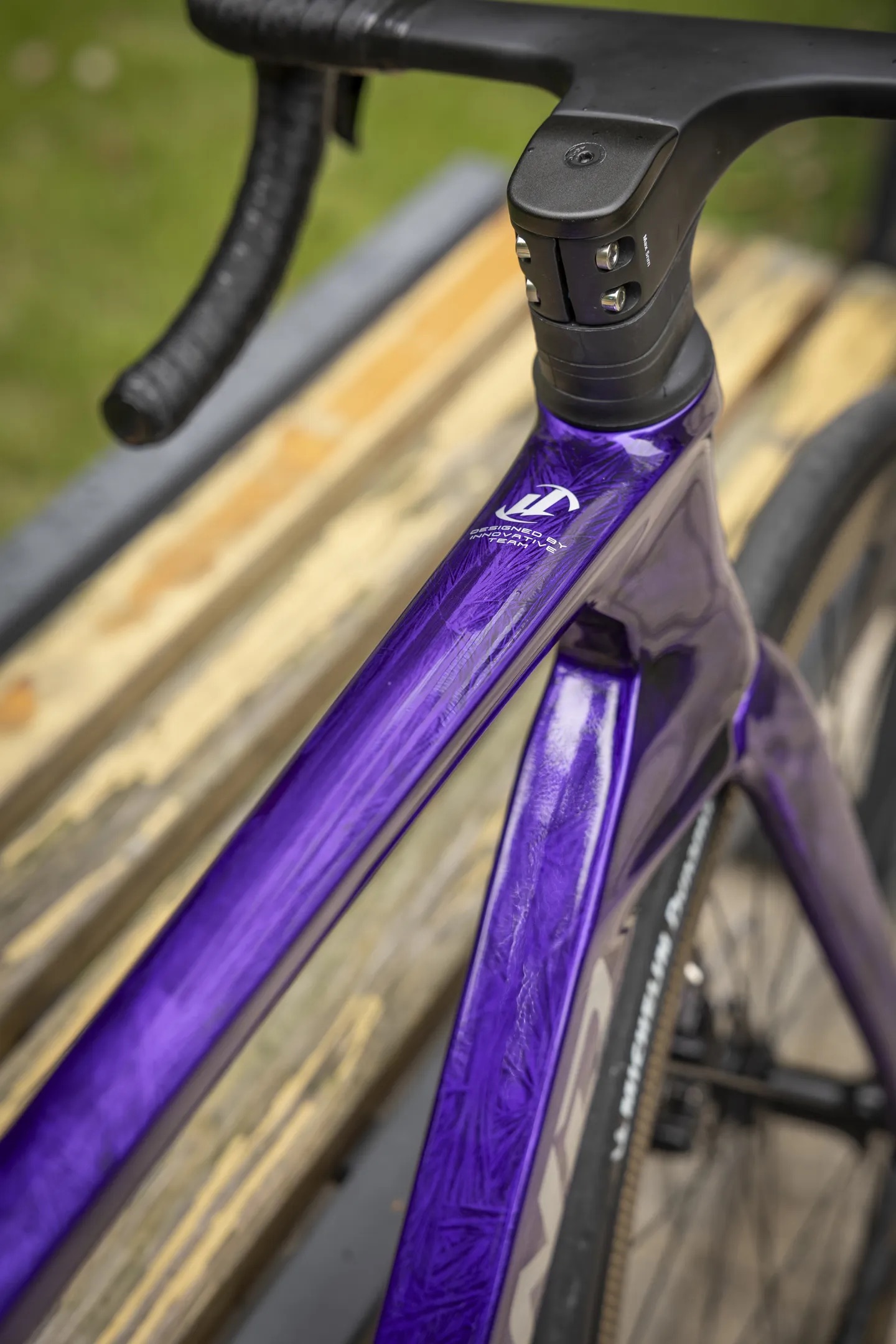

Handlebar: MUTECH Edge Carbon Aero One-Piece Handlebar default size 3800 mm width x 900 mm stem and Compatible with full internal routing and semi-internal routing
Included Accessories: C-Clamp, Washer, Top Plug, Stem Cap, Stem Cap Screw
Compatible Fork Diameter: 28.6mm
Stem Angle: -10°
Reach: 75mm
Drop: 125mm

Shiftlevers: For Shimano 105 Mechanical R7100: Shimano 105 ST-R7120, Hydraulic Disc
For Shimano 105 Di2 R7150: Shimano 105 Di2 ST-R7170, Hydraulic Disc
For Shimano ULTEGRA Di2 R8150: Shimano ULTEGRA Di2 ST-R8170, Hydraulic Disc

Crankset: For Shimano 105 Mechanical R7100: Shimano 105 FC-R7100, 50-34T
For Shimano 105 Di2 R7150: Shimano 105 FC-R7100, 50-34T
For Shimano ULTEGRA Di2 R8150: Shimano ULTEGRA FC-R8100, 50-34T

Bottom Bracket: Press fit BB86

Freewheel: For Shimano 105 Mechanical R7100 and Shimano 105 Di2 R7150: Shimano 105 CS-R7100, 11-34T, 12 Speed
For Shimano ULTEGRA Di2 R8150: Shimano ULTEGRA CS-R8100, 11-30T, 12 Speed

Chain:  For Shimano 105 Mechanical R7100 and Shimano 105 Di2 R7150: Shimano 105 CN-M7100
For Shimano ULTEGRA Di2 R8150: Shimano ULTEGRA CN-M8101

Speed: 2x12s

Rotor Size: Shimano 160mm/140mm, centre lock

Wheelset: For white framesets: Mutech Breeze 50 Dazzling White Carbon Wheel with steel spoke
For all other frameset colours: MUTECH Breeze 50 Black Wave Dot Carbon Wheel with steel spoke

Saddle: Mutech LIT 2
Seat rail material: chrome-molybdenum steel 7*7mm
Base material: nylon
Cushion width: 143mm
Cushion length: 270mm
Weight: 204g±10g

Tires: Tubed MAXXIS High Road 28c

For custom colours or handlebars, please contact us on info@ROADYZ.com.au

Assembly

Bike is delivered in a box 80% assembled. This includes all gears, cranks, levers, brakes and rear wheel. Customer will need to install front wheel, pedals, and seat post.
